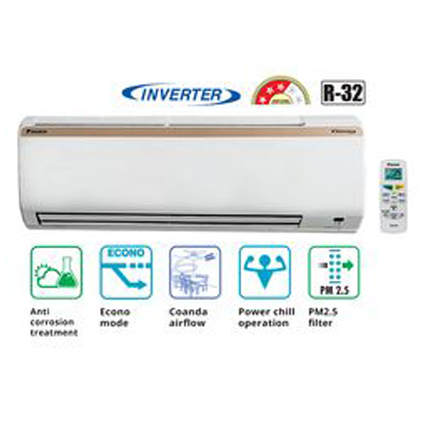

- Econo Mode
- Coandă airflow
- Power Chill Operation
- Quiet Operation
- PM 2.5 filter
- Product- 1 Year, Compressor – 5 Year(s)
Inverter 3 Star 1.8 TR FTKL60
₹60,400.00
Description
Type(Cooling)
| Inverter / Non-Inverter | Inverter |
| BEE Star Rating | 3 Star |
| Power Supply | 1Φ 50Hz 230V (220-240V) |
| Power Supply intake | Outdoor unit |
| Cooling capacity Rated Full/Half (min.~max.) | 6.0/3.0 (2.5~6.0)kW / 20500/10240 (8500~20500) Btu/h |
| Power Consumption Rated Full/Half (min.~max.) | 1970/780 (720-1970)W |
| Annual Power Consumption | 1255kWh |
| ISEER | 3.70/3* Wh/Wh |
| Operating Current | 8.67 A(Cooling) |
| Voltage Range | 160-265 V |
Indoor unit
| Panel color | White |
| Dimensions(H x W x D) | 298 x 885 x 229 |
| Package dimensions | 375 x 980 x 325 |
| Weight(Gross) | 11(16)kg |
| Airflow rate | 16.3 m3/min |
| Operation sound(H/M/L) | 47/45/43/40/38 (Cooling) |
Outdoor unit
| Dimensions(H x W x D) | 595 x 845 x 300 mm |
| Package dimensions | 680 x 1035 x 410 mm |
| Weight(Gross) | 35(43)kg |
| Operation sound H | 56/– dBA (Cooling) |
| Breaker Size | 20A |
Piping Length
| Charge-less | 10m |
| Max. Length | 30m |
| Max. Height | 20m |
Piping Connection
| Gas | Φ12.7 mm |
| Liquid | φ6.4 mm |
Operation Limit
| cooling | 19.4~50 ℃DB |
Measurement conditions
| Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m. | |
| Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions. | |
| Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.” |
