- Streamer discharge technology
- Quiet Operation
- Coandă airflow
- Intellgent Eye
- Warranty: Product- 1 Year, Compressor – 5 Year(s)

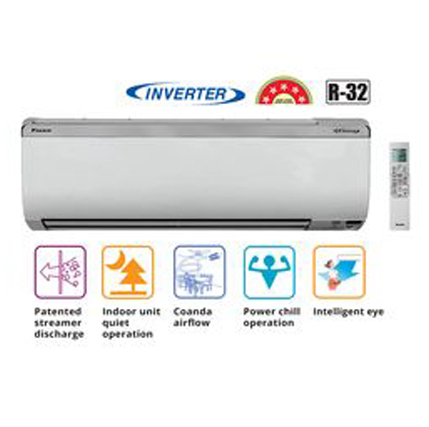

Inverter 5 Star 1 TR JTKJ35
₹51,000.00
Description
Model Name
| Indoor unit | JTKJ35TV16U |
| Outdoor unit | RKJ35TV16U |
Type(Cooling)
| Inverter / Non-Inverter | Inverter |
| BEE Star Rating | 5 Star |
| Power Supply | 1Φ 50Hz 230V (220-240V) |
| Power Supply Connection | Outdoor unit |
| Cooling capacity Rated Full/Half (min.~max.) | 3.62/1.81 (1.17~4.0)kW / 12350/6175 (4000~13600) Btu/h |
| Power Consumption Rated Full/Half (min.~max.) | 822/281 (220-1300)W |
| Annual Power Consumption | 483kWh |
| ISEER | 5.80 / 5* Wh/Wh |
| Operating Current | 3 A(Cooling) |
| Voltage Range | 160-265 V |
Indoor unit
| Panel color | White |
| Dimensions(H x W x D) | 298 x 885 x 229 mm |
| Package dimensions | 375 x 980 x 325 mm |
| Weight(Gross) | 11(16)kg |
| Airflow rate | 13 m3/min |
| Operation sound(H/M/L) | 39/35/32/29/26 dBA (Cooling) |
Outdoor unit
| Dimensions(H x W x D) | 550 x 765 x 285mm |
| Package dimensions | 642 x 932 x 380 mm |
| Weight(Gross) | 32(38)kg |
| Operation sound H | 48/44 dBA (Cooling) |
| Breaker Size | 15A |
Piping Length
| Charge-less | 10m |
| Max. Length | 20m |
| Max. Height | 15m |
Piping Connection
| Gas | Φ9.5 mm |
| Liquid | φ6.4 mm |
Operation Limit
| cooling | 10~50 ℃DB |
Measurement conditions
| Cooling capacity is based on: indoor temp. 27° CDB, 19° CWB; outdoor temp. 35° CDB, piping length 5 m. | |
| Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions. | |
| Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt. |
